Test Method

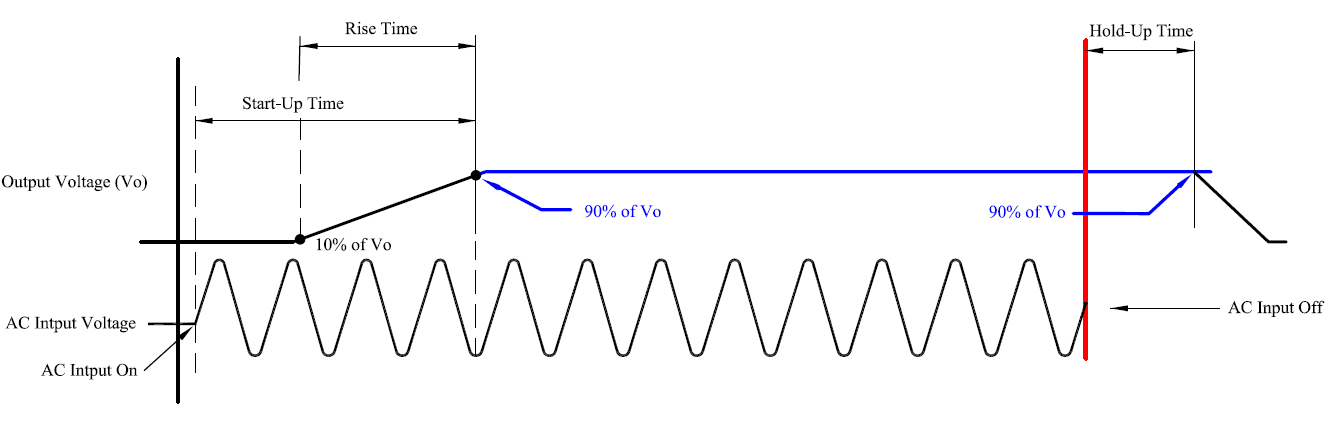

  • Start-up Time, Rise Time, and Hold-up Time



    1.Start-up Time:

    The time required for the output voltage to reach 90% of its set value after the input voltage is applied.

    2.Rise Time:

    The time required for the output voltage to reach from 10% to 90% of its set value.

    3.Hold-up Time:

    The time as the AC input was declined but the output voltage remains regulation for a period of time.

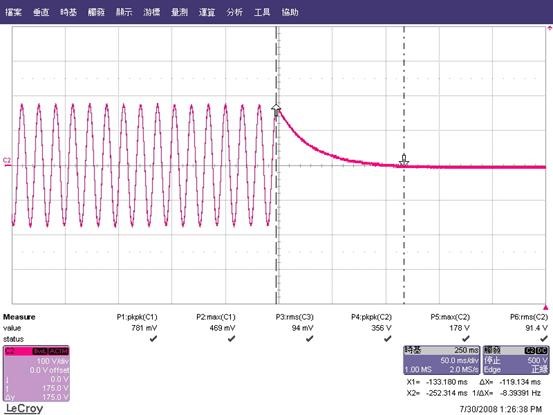

  • AC discharge test



    Measurement of voltage of stored charge 1 second after disconnection of mains plug.

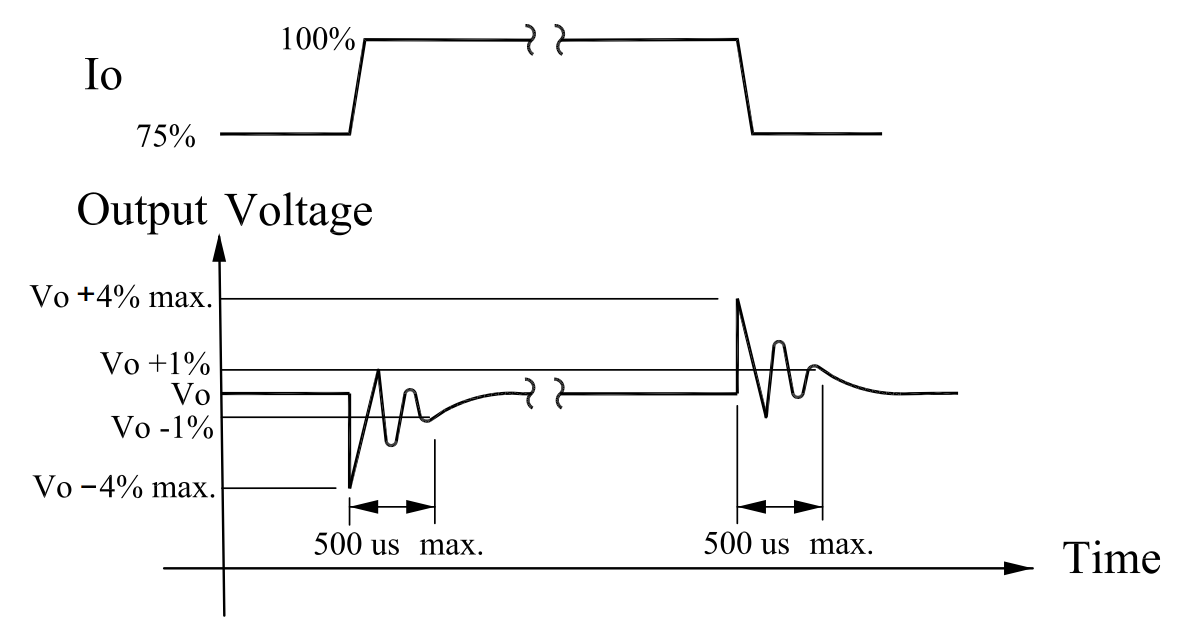

  • Transient Response



      The time needed for an output voltage to be within specified exactness limits after a step change in line or load situations.

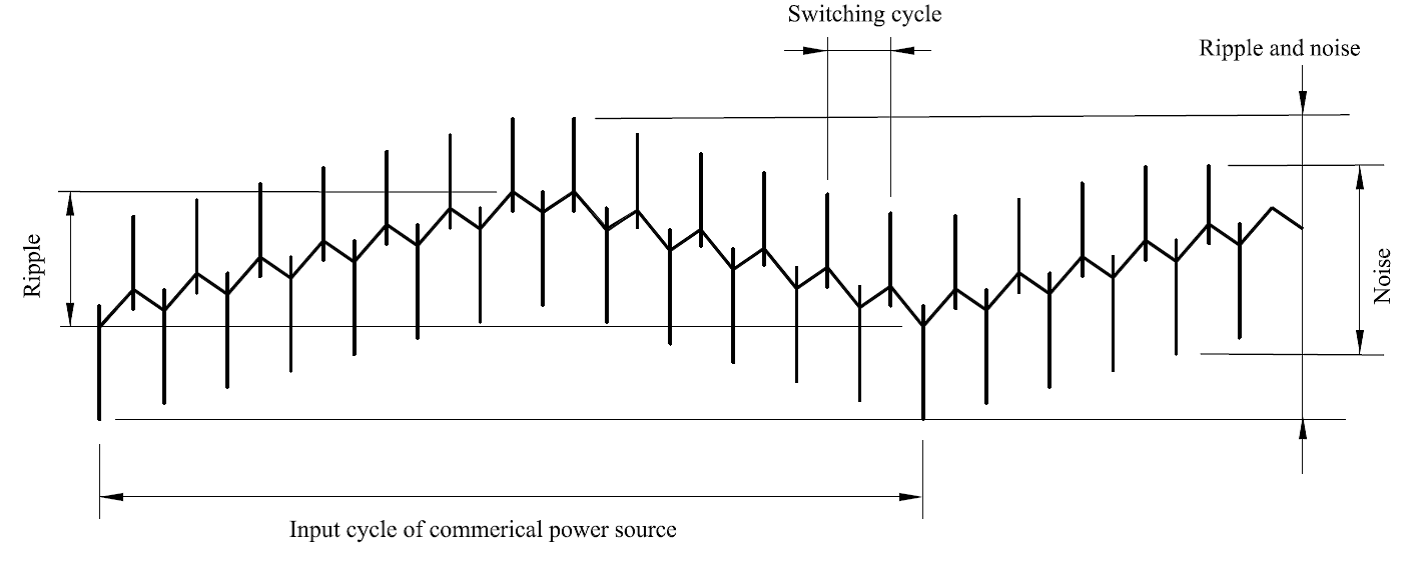

  • Ripple & Noise



      The amplitude of the AC component of the DC output of a power supply usually showed in millivolts peak-to-peak or rms. For a liner power supply it is usually at the frequency of the AC mains. For a switching power supply, it is normally at the switching frequency of the converter stage.

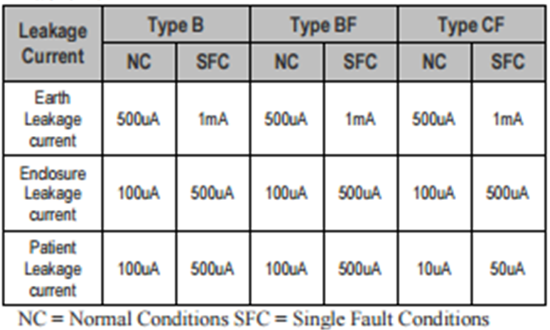

  • Classification of Applied Parts



    Type B  – No electrical contact with Patient and maybe earthed

    Type BF  – Electrically connected to Patient but not directly to heart

    Type CF  – Electrically connected to the heart of the Patient.

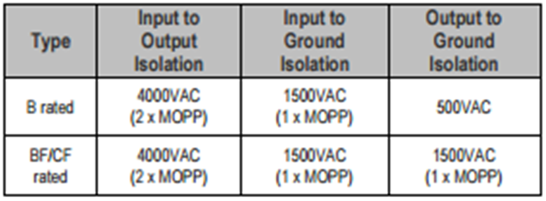

  • MOOP & MOPP



      Means of Patient Protection (MOPP) and Means of Operator Protection (MOOP). It is the responsibility of the medical product manufacturer to determine the likelihood of a patient coming into contact, and decide whether patient protection (MOPP) or operator protection (MOOP) to use.

  • Ground Continuity Test



      Determining effectiveness of “ground” grids and connections that are used with the power device to protect personnel and equipment.
