Medical Adapter

PMP135

Introduction

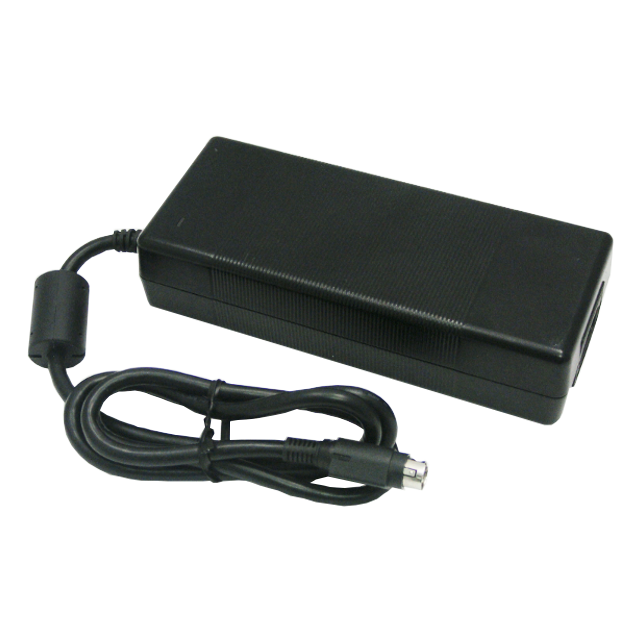

The PMP135 series of AC/DC switching power supplies are for 120-135 watts of continuous output power. They are enclosed in a 94V-0 rated polycarbonate case with an IEC320/C14 or IEC320/C18 inlet to mate with interchangeable cord for world-wide use. All models meet EN55011 and FCC class B emission limits, and are designed for medical applications.

Feature

Low safety ground leakage current
Wide input range 90 to 264 VAC
Power factor corrected
200% peak power capability on models below 26 Vdc output
Optional output connectors
Overvoltage protection
Over-temperature protection
Overcurrent protection
Compliant with CEC and Energy Star Efficiency level V requirements
No load power consumption less than 0.5 W
Average active efficiency greater than 87%
Compliant with RoHS requirements

Model		Output					Average Active Efficiency (typical) @ 115 / 230 Vac
Class I	Class II	V1	Maximum Current	Peak current	Ripple & Noise	Max. Power
PMP135-12	PMP135F-12	12 V	10.00 A	20.0 A	120 mV	120 W	87 /89%
PMP135-12-1	PMP135F-12-1	13 V	9.23 A	18.5 A	130 mV	120 W	87 /89%
PMP135-13	PMP135F-13	14 V-16 V	9.29 A	18.6 A	150 mV	130 W	87 /89%
PMP135-13-1	PMP135F-13-1	18 V-19 V	7.50 A	15.0 A	180 mV	135 W	87 /89%
PMP135-13-3	PMP135F-13-3	20 V-21 V	6.75 A	13.5 A	200 mV	135 W	87 /89%
PMP135-14	PMP135F-14	24 V-25 V	5.63 A	11.3 A	240 mV	135 W	88 /90%
PMP135-15	PMP135F-15	28 V-29 V	4.83 A	5.8 A	280 mV	135 W	88 /90%
PMP135-16	PMP135F-16	30 V-32 V	4.50 A	5.4 A	300 mV	135 W	89 /90%
PMP135-17	PMP135F-17	36 V-38 V	3.75 A	4.5 A	360 mV	135 W	89 /91%
PMP135-18	PMP135F-18	46 V-50 V	2.94 A	3.5 A	480 mV	135 W	90 /91%

Download

Name	Update Time	File Size
PMP135(20210618)	2024-10-23	291.23 KB
